Wire Anchors
1) PEEK with Threaded Anchor Screw-in
Threaded implants placed in the cortical/subchondral bone provide tighter, more stable cartilage fixation, resulting in superior pull-out strength and reducing the risk of implant micromovement and potential loosening.
- Superior pull-out strength
- Reduces risk of implant micromovement and loosening
- Chamfered inner top protects attachment sutures from bone abrasion and failure
| NO. | Specification | Product Description |
|---|---|---|
| 1 | 5.5×14.7mm | PEEK threaded anchor, screw-in type, φ5.5mm, with two No. 2 sutures (blue and black/white). |

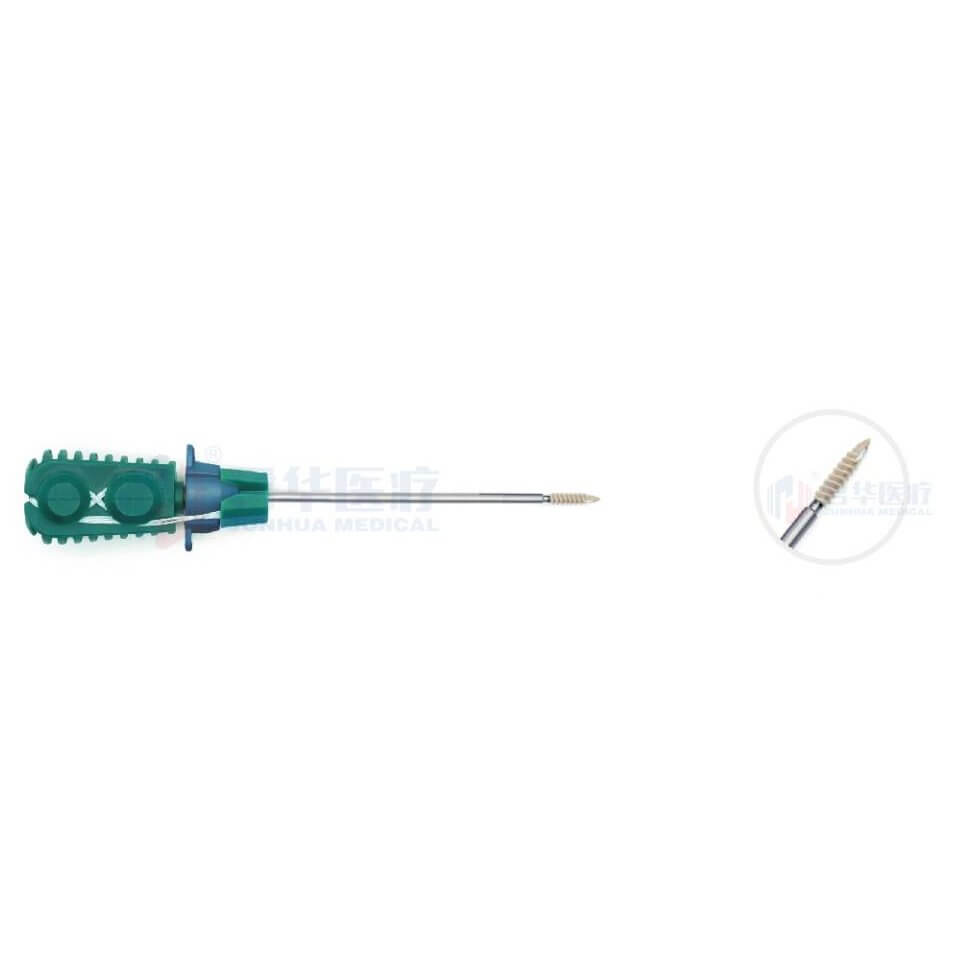

2) PEEK with Threaded Anchor Screw-in
Medial anchoring strip for rotator cuff repair. Double-threaded design for quick tightening, strong anchoring, and high pull-out force.
- Double-threaded design for quick tightening
- Strong anchoring and high pull-out force
- Screwdriver penetrates deep into the anchor head for stable contact
- Safe, controllable torque, preventing breakage
| NO. | Specification | Product Description |
|---|---|---|
| 1 | 4.5×19mm | PEEK Anchor with Thread, Screw-in Type, φ4.5mm, with two No. 2 Sutures (white, blue-white). |
| 2 | 5.5×19mm | PEEK Anchor with Thread, Screw-in Type, φ5.5mm, with two No. 2 Sutures (white, blue-white). |
| 3 | 6.5×19mm | PEEK Anchor with Thread, Screw-in Type, φ6.5mm, with two No. 2 Sutures (white, blue-white). |
3) PEEK Anchors with Wire, Hollow Inner Row of Anchors
Rotator cuff repair medial row anchors. Fully threaded, providing superior pull-out force for patients with low bone mass.
- Cannulated anchor guides bone marrow stem cell diffusion, promoting tendon-bone healing
- Suitable for tendon-bone fixation of the shoulder and knee joints
- Internally driven, enhancing maximum failure torque
| NO. | Specification | Product Description |
|---|---|---|
| 1 | 4.5×19.5mm | PEEK Anchors with Thread, Hollow Inner Row of Anchors, φ4.5 2 Threads of No. 2 Suture (blue, blue and white). |
| 2 | 5.5×19.5mm | PEEK Anchors with Thread, Hollow Inner Row of Anchors, φ5.5 2 Strands of No. 2 Suture (blue, blue and white). |
